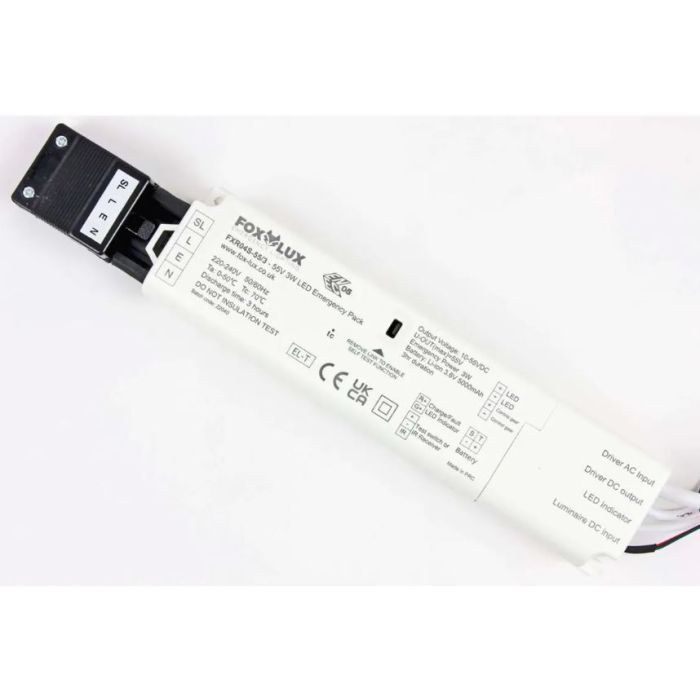

S29645: The Fox Lux Emergency Remote Box is manufactured to provide full compliance with current applicable standards. Ideal for use with LED panels ad downlights, it is easy to install and has an automatic self-test feature as standard*. S29645 is supplied prewired with ‘twist-lock’ connectors and all cables pre-labelled. An LED indicator bezel and mains connector are included.
*Supplied manual test as standard. To activate self-test, remove link.
Features:
- 5-year warranty including battery
- Fast re-charge with Li-ion battery (first charge 16hrs)
- Deep discharge protection
- Microprocessor controlled battery charging
- Automatic self-test (activated by removing link)
- Remote control optional (when IR/R connected)
- Pre-wired for easy installation
- LED indicator bezel and mains connector included
Manual Test:
Once connected the luminaire must be commissioned and tested by a competent person in accordance with to BS EN 50172:2004.
Self-test:
The self-test function is disabled by default. If self-test is required, please remove jumper located on the pack. A brief functional test will occur automatically each week (+/- 6hrs at random) The first full duration test will be carried out automatically within the first 4 weeks of the luminaire being connected to the mains supply and every 12 months thereafter. Battery capacity can be checked by pressing "BAT CHK" on remote control after a duration test has been completed.
