In stock
[SPECIAL OFFER WHILST STOCKS LAST!] This kit provides a comprehensive solution for all installation testing, giving you the flexibility to test for electrical safety as well as EVSE functionality. The KT66EV has it all, and we've got it at the best price! Includes KT66DL and KEWEVSE adapter, RCD Type B, EV and 6mA, Low current 3 and 2 wire loop tests, High current 25A 0.001 ohm range. Full details here:-

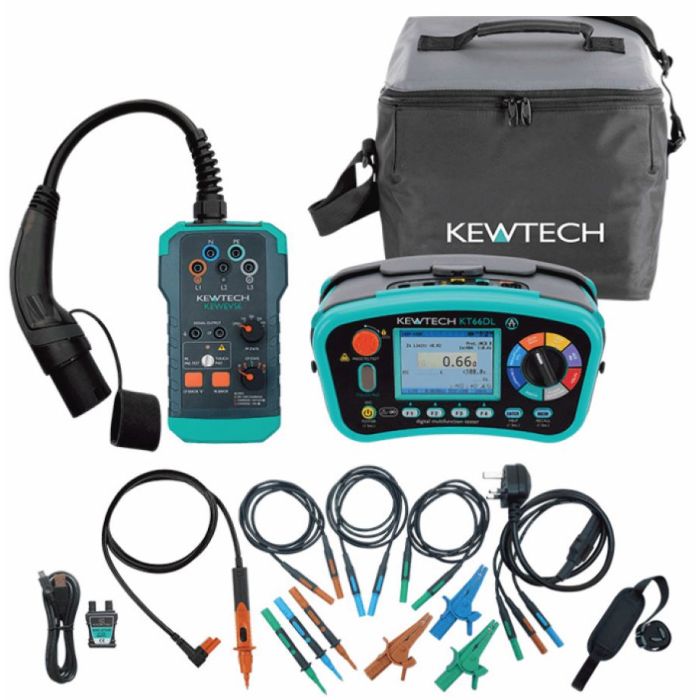

The Kewtech KT66EV Multifunction Tester & EV Adapter Kit is the ultimate package for installation testing, especially for those which involve electric vehicle charging points. Test electrical safety alongside EVSE functionality, including any EV points installed with Type B RCDs or with 6mA residual direct current devices, and in either TN or TT configurations.
Kewtech KT66DL 12-in-1 Multifunction Tester
The Kewtech KT66DL 12-in-1 Multifunction Tester provides a comprehensive suite of features such as a pioneering loop testing system which includes both 2 & 3 wire low current test options. Anti-Trip technology (ATT) for no trip LOOP L-PE testing on all RCDs is incorporated as is an in-depth RCD testing facility
Built for domestic, commercial and industrial installations, the KT66DL can perform a wide range of tests: - Continuity - Insulation - Hi Current Loop - Lo Current Loop - PSC - PFC - RCD - Volts - Earth Resistance - SPD - Phase Rotation - PAT
The full specifications of the Kewtech KT66DL 12-in-1 MFT are detailed below
With a 3.5 inch colour LCD dot matrix display the Kewtech KT66DL boasts an advanced internal memory with help options explaining how to connect the instrument according to the selected function. Rated CAT IV 300V and CAT III 600V, the KT66DL is fully in line with the latest IEC safety guidelines.
Kewtech KEWEVSE EV Charging Point Adapter
The Kewtech KEWEVSE EV Charging Point Adapter is a highly portable device which when used in combination with a suitable Multifunction Tester such as the KT66DL, enables loop, RCD and Residual Direct Current Devices (RDCD) testing. It can simulate the presence of an electric vehicle in order to test the functionality of EV supply equipment, including detecting a PE fault. Capable of PP simulation & CP states A, B, C, D, this adapter uses bright LEDs to provide clear visual indication.
Key Features - 12-in-1 multifunction tester - For testing EV charging points - Capable of insulation & continuity testing - High & low current testing with anti-trip technology - Phase rotation and earth rotation features included. - RCD testing facility with EV charging point test - Loop, RCD and RDCD testing - Loop testing system includes 3 & 2 wire low current test options - Includes PE Pre-Test - PP simulation & CP states A, B, C, D - CP Error / PE Error/ Earth fault - LED indication of Phases - Colour LCD display - Intuitive design with simple interface - Advanced internal memory - Rated CAT IV 300V and CAT III 600V
