Out of stock

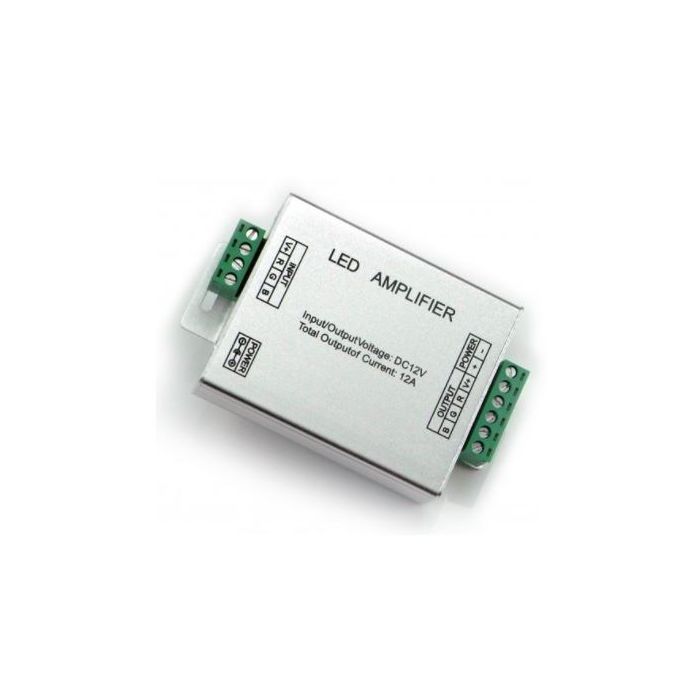

This RGB (Multicolour) Amplifier can be used in conjunction with RGB Remote Control (Touch Dial) for LED Strip Lighting.
The RGB Amplifier is used in instances where you may wish to control numerous RGB LED Strips collectively from one central controller. It simply boosts the original control signal, continuing the desired light effect or colour pattern.
- Working temperature: -20-60 ℃
- Supply voltage: DC 12V
- Output: 3 channels
- Connecting mode: common anode
- External dimension: L105ΧW65ΧH25mm
- Net weight: 104g
- Static power consumption: <1 W
- Output current: <4 A (each channel)
- Output power: 12V:<144W
Note: Despite the Central Controller being controlled via a Remote Frequency (RF) remote, be advised that in order for the RGB Amplifier(s) to work they need to be wired into your circuit and, in each instance, will also require a 12v Constant Voltage Power Supply (power capacity dependent on the LED Strip it will be powering). Please see the diagrams which depict the wiring instructions for both a Parallel and Series Circuit
