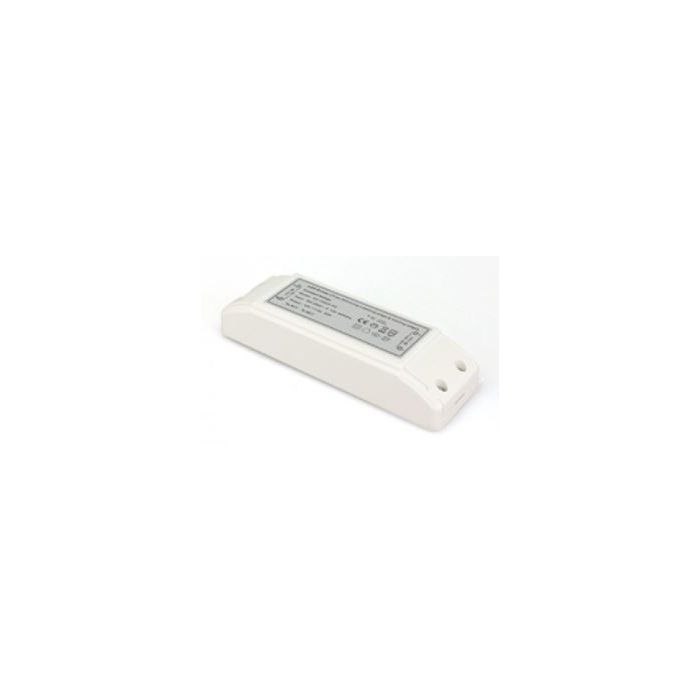

20W Mains Dimmable LED Driver is suitable for use with Dimmable 12V LED lamps, and 12V LED Strip Lights.This driver allows dimming of constant voltage LED products using conventional TRIAC dimmer switches such as trailing edge or leading edge which in the majority of cases means you don't have to have replace your dimmer switches.
Spec:
- Output is 12V Constant Voltage
- Voltage Range 180-250VAC
- Built-in PFC function
- Protections: short circuit/over voltage
- Fully isolated plastic case (IP20)
- Easy installation - has fixing holes to allow for direct mounting
- Cooling by free air convection
- Works with leading edge and trailing edge TRIAC dimmers
- Strong compatibility, flicker-free dimming
- CE, RoHs & EMC Compliant
Width: 45mm - Length: 140mm - Depth: 27mm
Important Reminder: 20% of the transformer capacity needs to be left over to prevent overloading
