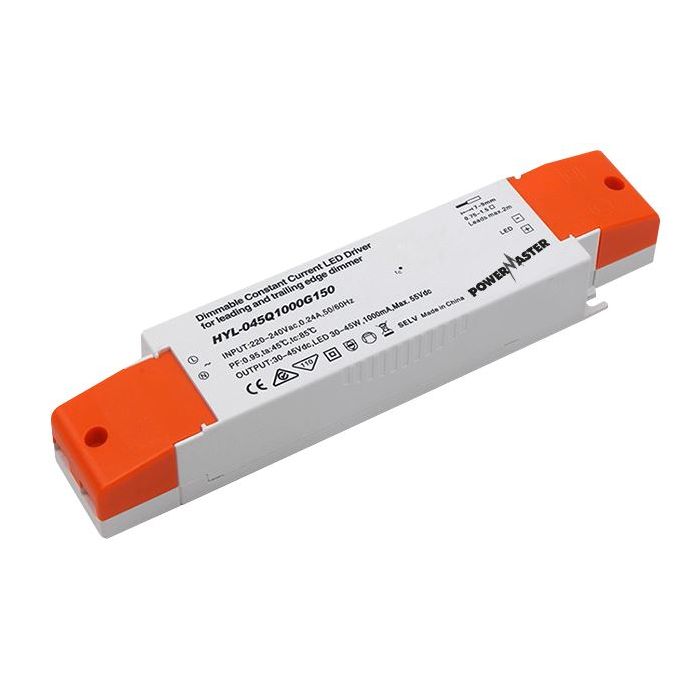

This Powermaster LED TRIAC Dimmable driver is compatible with LUMiLiFE panel lights up to 45W and will operate with most Leading edge and Trailing Edge TRIAC dimmer switches.
- Input Voltage: 220-240V (AC) ~ 50/60Hz
- Constant Current Output: 1000mA
- Output Voltage: DC 30-45V
- Rated Output Power: 30-45W
- Power Factor: >0.95
- Average Life: 30,000hr
- Min. and Max. Ambient Temp: -20ºC to +45ºC
- Isolated Circuit
- Dimmable: Suitable for Most Leading and Trailing Edge Dimmers
- Dimming Range: 10% - 100%
- Flicker-Free
- Suitable for Luminaire: Class II
- IP Rating: IP20
- Input and Output Terminal: Push type, 1 with 2 ports
- Dimension mm: 198(w) × 43(d) × 30(h) *Approximate measurements
- Compliance: IEC61547 / EN55015 / IEC61347-1 / IEC61347-2-13 / IEC61000-3-2
