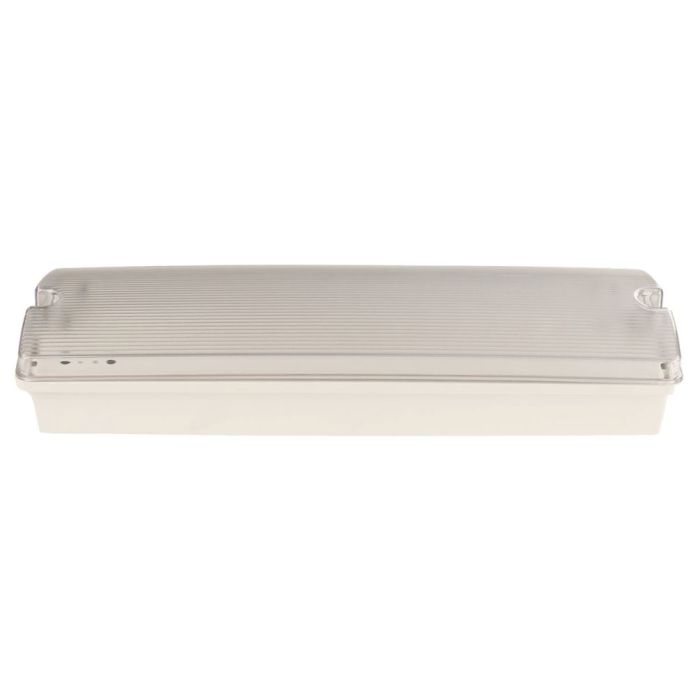

[SELF TEST OPTIONS] BHA1.5-SD Granite Maintained/Non-Maintained Emergency LED Bulkhead by Z10 Safety: Weatherproof (IP65) and robust (IK10) self-contained emergency LED bulkhead. Constant emergency light (1.5W/170lm) for 3 hours. Low stand-by power consumption. Self-test versions and remote controls available. Self-adhesive legend available for 20m viewing distance exit sign. Lithium battery integrated. Maintained or non-maintained configurations. Suitable for indoor and outdoor applications such as car parks, distribution centres, storage rooms and sports centres.
Installation Notes:
- Surface ceiling or wall mount
- BESA entry drilling template on rear
- IP65 and IK10 rating
- Cable entry to sides, top/bottom and rear (20mm cut-outs)
- Screwless terminal block (SL, L, N)
- Terminal block takes wires up to 3 x 2.5mm²
Testing Facilities:
- SD (Standard): Functional and full duration tests must be initiated and carried out manually according to BS EN 50172:2004. This luminaire has an integrated test button for quick functional test.
Optional:
- AST (Advanced Self-Test): This is a self-test luminaire. Functional test is carried out automatically once a week and runs for 30 seconds. Full duration test is carried out automatically every 52 weeks. First full duration test is carried out automatically within the first 4 weeks after the luminaire being connected to mains voltage. This luminaire can be used in conjunction with the Advanced Remote Control (ARC). ARC is an optional tool that adds extra features to AST emergency luminaires. Please refer to the ARC's user guide.
- PST (Programmable Self-Test): This is a programmable self-test luminaire. It must be used in conjunction with a Programmable Remote Control (PRC). Please refer to PRC’s user guide.
**Select Standard (manual Test), AST, or PST options at right side (allow 3-5 working days for AST or PST)**
